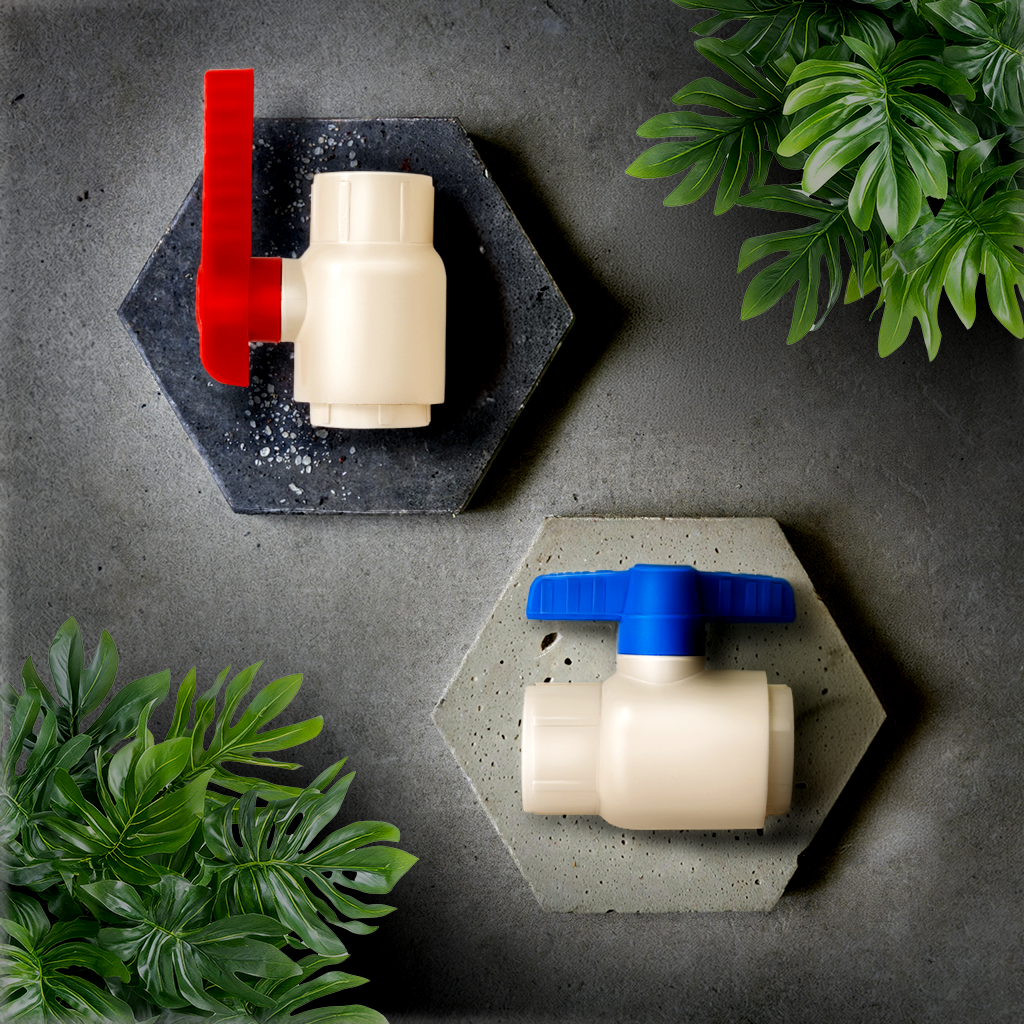

CPVC Ball Valve Union Modal
Our CPVC Ball Valve – Union Model is engineered for reliable flow control in high- temperature and corrosive fluid handling applications. Manufactured from premium- grade Chlorinated Polyvinyl Chloride (CPVC), this valve ensures superior strength, chemical resistance, and long service life.
The union-type design allows easy installation and convenient maintenance without disturbing the entire pipeline system. It is ideal for industrial, commercial, and residential plumbing systems where durability and leak- proof performance are essential.
Key Features
- High-quality CPVC construction
- Excellent resistance to chemicals and corrosion
- Suitable for hot and cold water applications
- Union end connection for easy dismantling
- Smooth quarter-turn operation
- Leak-proof sealing with precision-engineered ball
- Low maintenance and long operational life
Applications
- Industrial fluid handling systems
- Chemical processing plants
- Water treatment systems
- Hot & cold water distribution
- Agricultural and irrigation systems
Available Sizes
Available in multiple sizes to suit various piping requirements.
| SIZE | UNIT PER BOX | MASTER CARTON |
| 20 MM (3/4″) | 60 X 4 | 240 |
| 25 MM (1″) | 42 X 4 | 168 |
| 32 MM (11/4″) | 22 X 4 | 88 |
| 40 MM (11/2″) | 16 X 4 | 64 |
| 50 MM (2″) | 8X4 | 32 |
Technical Data Sheet
The CPVC Ball Valve – Union Model is a precision-engineered thermoplastic valve designed for efficient flow control in high- temperature and corrosive fluid applications. Manufactured from high-grade Chlorinated Polyvinyl Chloride (CPVC), the valve ensures excellent chemical resistance, dimensional stability, and long service lif
The union end connection enables easy installation, removal, and maintenance without disturbing the pipeline system.
Material Specification
| Component | Material |
| Body | CPVC |
| Ball | CPVC |
| Stem | CPVC |
| Seat | PTFE |
| O-Ring | EPDM / FPM (Optional) |
| Handle | PVC/ABS |
Technical Specifications
| Parameter | Specification |
| Size Range | 1/2″ to 2″ (15mm – 63mm) |
| Pressure Rating | Up to 10 kg/cm2 (at 27°C) |
| Maximum Working Temperature | Up to 93°C |
| End Connection | Threaded (BSP/NPT) / Socket |
| Operation | Quarter Turn |
| Media | Water, Chemicals, Acids, Alkalis |
Standards Compliance
- Manufactured as per relevant ASTM standards
- Threads conform to BSP / NPT standards
- Suitable for potable water applications (if certified)
Features
- Corrosion resistant
- Chemical resistant
- Leak-proof sealing
- Smooth operation
- Easy maintenance due to union design
- Long service life
Applications
- Hot & Cold Water Systems
- Chemical Processing
- Water Treatment Plants
- Industrial Piping Systems
- Irrigation & Agriculture
Installation Guidelines
- Ensure proper alignment before tightening.
- Avoid over-tightening of threaded connections.
- Use PTFE tape for threaded joints.
- Operate valve periodically for longer life.
