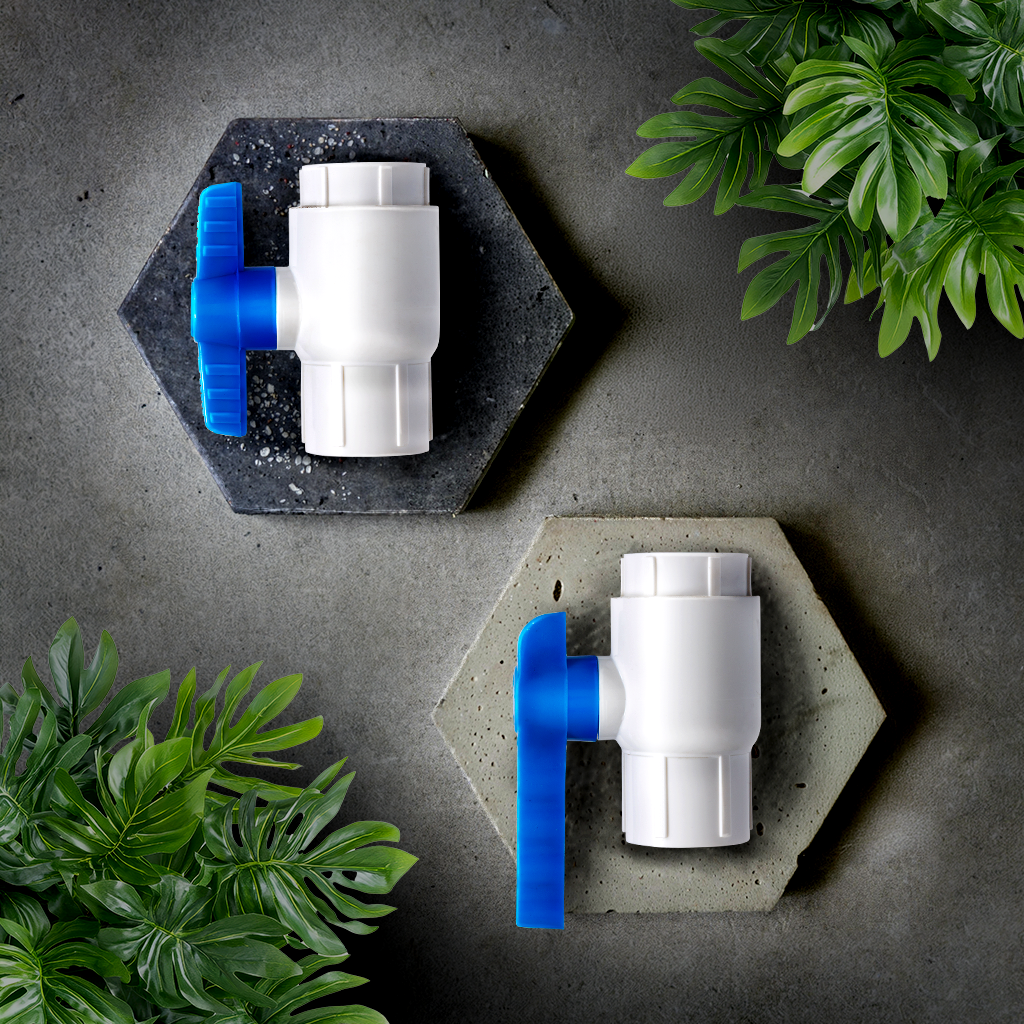

UPVC Ball Valve Union Modal
The UPVC Ball Valve – Union Model is a high- performance thermoplastic valve designed for precise flow control in water supply and industrial piping systems. Manufactured from premium-grade Unplasticized Polyvinyl Chloride (UPVC), the valve offers excellent durability, corrosion resistance, and long-term reliability.
The union-type design allows for easy installation, removal, and maintenance without dismantling the entire pipeline, making it an ideal solution for modern plumbing and industrial applications.
Engineered for smooth quarter-turn operation, the valve ensures tight shut-off performance and minimal pressure drop. Its robust construction and precision-molded components provide leak-proof sealing and extended service life.
Key Features
- High-strength UPVC construction
- Corrosion and chemical resistant
- Union end for easy maintenance
- Smooth 90° quarter-turn operation
- Leak-proof PTFE seat sealing
- Lightweight yet durable body design
- Suitable for potable water applications
Applications
- Residential and commercial water supply
- Agriculture and irrigation systems
- Water treatment plants
- Industrial fluid handling
- Plumbing systems
Available Sizes
Available in multiple sizes to suit various piping requirements.
| SIZE | UNIT PER BOX | MASTER CARTON | RATE | MRP |
| 15 MM (1/2″) | 60 X 4 | 240 | 38.75 | 120 |
| 20 MM (3/4″) | 60 X 4 | 240 | 50 | 245 |
| 25 MM (1″) | 42 X 4 | 168 | 70.87 | 215 |
| 32 MM (11/4″) | 22 X 4 | 88 | 123.75 | 290 |
| 40 MM (11/2″) | 16 X 4 | 64 | 151.25 | 430 |
| 50 MM (2″) | 8X4 | 32 | 256.25 | 635 |
Technical Data Sheet
The UPVC Ball Valve – Union Model is a precision-molded thermoplastic valve designed for efficient flow control in water distribution and industrial piping systems. Manufactured from high-quality Unplasticized Polyvinyl Chloride (UPVC), the valve provides excellent corrosion resistance, dimensional stability, and long service life.
The union-end configuration enables easy installation, dismantling, and maintenance without disturbing the complete pipeline system.
Material Specification
| Component | Material |
| Body | UPVC |
| Ball | UPVC |
| Stem | UPVC |
| Seat | PTFE |
| O-Ring | EPDM / NBR |
| Handle | PVC/ABS |
Technical Specifications
| Parameter | Specification |
| Size Range | 11⁄2″ to 4″ (15mm – 110mm) |
| Pressure Rating | Up to 10 kg/cm2 (at 27°C) |
| Maximum Working Temperature | 0°C to 60°C |
| End Connection | Threaded (BSP/NPT) / Socket |
| Operation | Quarter Turn (90°) |
| Media | Water, Mild Chemicals,Non-corrosive Fluids |
Standards Compliance
- Manufactured as per relevant ASTM / DIN standards
- Threading conforms to BSP/NPT standards
- Suitable for potable water (subject to certification)
Features
- Corrosion resistant
- Leak-proof sealing
- Smooth and easy operation
- Lightweight and durable
- Maintenance-friendly union design
- Long service life
Applications
- Residential & Commercial Plumbing
- Agriculture & Irrigation Systems
- Water Treatment Plants
- Industrial Piping Networks
- Swimming Pools & Utility Lines
Installation Guidelines
- Ensure proper alignment before tightening.
- Use PTFE tape for threaded connections.
- Do not over-tighten to avoid damage.
- Periodically operate valve to maintain smooth performance.
