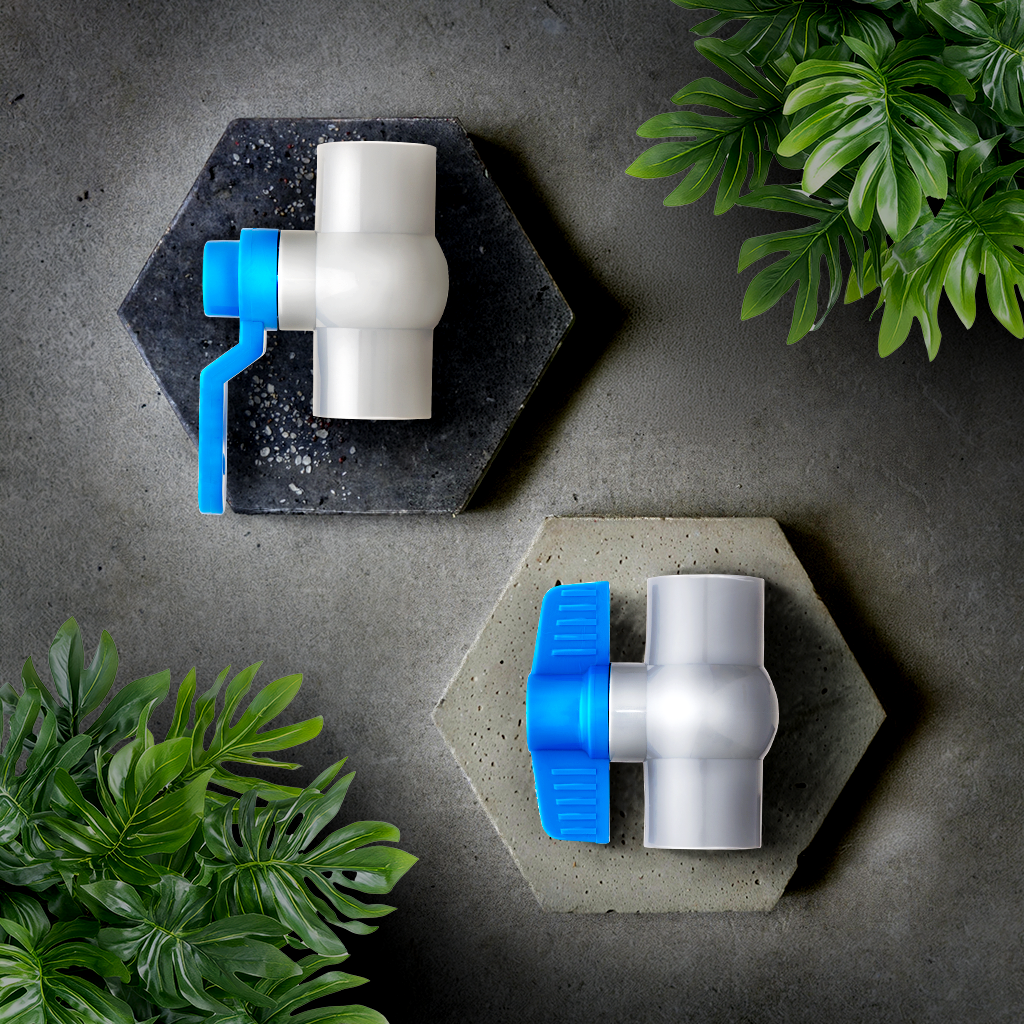

PVC Ball Valve Solid Modal
The PVC Ball Valve – Solid Model is a durable and cost-effective flow control solution designed for water distribution and general piping applications. Manufactured from high- quality Polyvinyl Chloride (PVC), this valve offers excellent resistance to corrosion, rust, and scaling, ensuring reliable long-term performance.
The solid (single-piece) body construction provides enhanced strength and stability, making it ideal for fixed pipeline installations where frequent dismantling is not required. Its precision-engineered ball and PTFE seat ensure smooth quarter-turn operation and leak-proof sealing under recommended working conditions.
Lightweight, easy to install, and maintenance friendly, the PVC Solid Ball Valve is widely used in residential, agricultural, and light industrial systems.
Key Features
- Strong single-piece solid body design
- High-grade PVC construction
- Corrosion and chemical resistant
- Smooth 90° quarter-turn operation
- Leak-proof PTFE seat sealing
- Lightweight and easy to install
- Low maintenance and long service life
Applications
- Residential water supply systems
- Agricultural irrigation pipelines
- Water storage and distribution lines
- Swimming pool plumbing systems
- General industrial utility piping
Available Sizes
Available in multiple sizes to suit various piping requirements.
| SIZE | UNIT PER BOX | MASTER CARTON | RATE | MRP |
| 15 MM (1/2″) | 60 X 4 | 240 | 35.75 | 95 |
| 20 MM (3/4″) | 60 X 4 | 240 | 46.71 | 110 |
| 25 MM (1″) | 42 X 4 | 168 | 64.17 | 145 |
| 32 MM (11/4″) | 22 X 4 | 88 | 97.5 | 195 |
| 40 MM (11/2″) | 16 X 4 | 64 | 147.06 | 270 |
| 50 MM (2″) | 8X4 | 32 | 211.25 | 375 |
Technical Data Sheet
The PVC Ball Valve – Solid Model is a compact and reliable thermoplastic valve designed for effective flow control in water distribution and general piping systems. Manufactured from high-quality Polyvinyl Chloride (PVC), the valve provides excellent resistance to corrosion, scaling, and chemical exposure.
The solid single-piece body construction enhances strength and durability, making it suitable for fixed installations where dismantling is not required.
Material Specification
| Component | Material |
| Body | PVC |
| Ball | PVC |
| Stem | PVC |
| Seat | PTFE |
| O-Ring | EPDM / NBR |
| Handle | PVC/ABS |
Technical Specifications
| Parameter | Specification |
| Size Range | 1⁄2″ to 4″ (15mm – 110mm) |
| Pressure Rating | Up to 10 kg/cm2 (at 27°C) |
| Maximum Working Temperature | 0°C to 55°C |
| End Connection | Threaded (BSP/NPT)/Socket |
| Operation | Quarter Turn (90°) |
| Media | Water, Mild Chemicals,Non-corrosive Fluids |
Standards Compliance
- Manufactured as per relevant ASTM / DIN standards
- Threads conform to BSP / NPT standards
- Suitable for potable water applications (subject to certification)
Features
- Strong solid body construction
- Corrosion resistant
- Leak-proof PTFE seat sealing
- Smooth and easy operation
- Lightweight and durable
- Low maintenance
- Long service life
Applications
- Residential & Commercial Plumbing
- Agriculture & Irrigation Systems
- Water Supply Lines
- Swimming Pool Plumbing
- General Industrial Utility Piping
Installation Guidelines
- Ensure proper alignment before tightening.
- Use PTFE tape for threaded connections.
- Avoid over-tightening to prevent damage.
- Periodically operate the valve for smooth performance.
